# Proxidize SX2 Microserver

Learn about the Proxidize SX2 Microserver and its hardware role.

{% hint style="info" %}
The Proxidize SX2 Microserver is discontinued and is no longer sold.

This page stays available for existing owners. For new proxy needs, see [Choose Between Mobile and Residential Proxies](https://help.proxidize.com/getting-started/choose-between-mobile-and-residential-proxies.md).
{% endhint %}

## Proxidize SX2 micro server features and specifications.

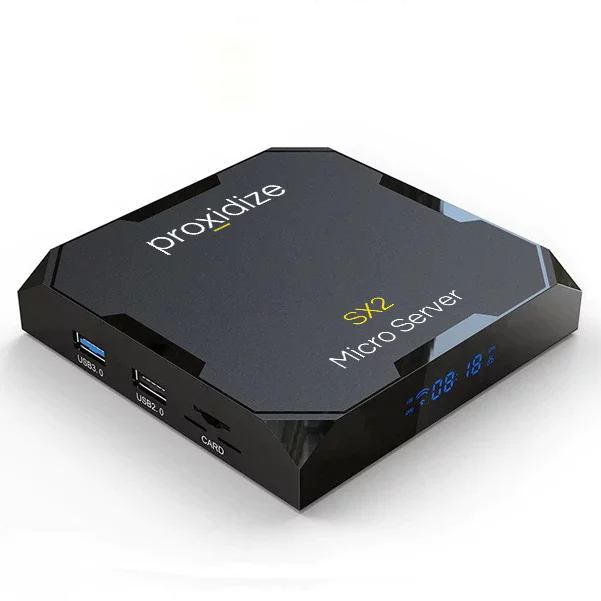

The Proxidize SX2 Micro Server is a robust and compact Proxidize host machine. With the capacity to support up to 20 USB modems and a network bandwidth of 1 Gbps, it is built for dependable and efficient mobile proxies.

This server powers every Proxidize 20-modem kit and can be used to build 4G LTE or 5G mobile proxy networks.

### Models:

1. SX2-ROW model for Europe, Asia, Africa and Oceania
2. SX2-NSA model for the North America and South America

### SX2 Micro Server Package Contents:

1. SX2 Micro Server
2. Ethernet Cable
3. Power Adapter
4. User Manual

### Features:

1. Instant integration with all Proxidize equipment & systems
2. Supports up to 20 USB modems
3. Network speed of up to 1 Gbps
4. 1 Year International Warranty

![](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/oD96VnO5T5xFOf7Jmhbv/9MCGB6VGTWF6FNDR3oG60AGt6cCAfBDaRWiMfYUxaVr1OvxfE8yUV0Vbsw9hyUZzta6oq4PmmZk.png)

### How to set up your Proxidize SX2 Microserver:

{% stepper %}
{% step %}

## Take everything out of the box and packaging

Proxidize Kits come with a lot of packaging material to protect the hardware during international shipping.

The first thing you need to do once you have the package is to take everything out of its packaging.

![Getting Started with Proxidize, SX2 One](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/59gtzl0ey3sjku20KVfo/8979128386461)
{% endstep %}

{% step %}

## Connect the Ethernet cable to your router and to the Proxidize SX2 Server.

Every Proxidize kit comes with an Ethernet cable. You need to use this cable to connect the Proxidize Server to the internet by connecting one side of the cable to the Proxidize Server and the other side to your router.

![Getting Started with Proxidize, SX2 Two](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/orxSYYcOFFayUGps1nbC/8979129066141)
{% endstep %}

{% step %}

## Connect the USB hub to the Proxidize SX2 Server via the USB cable

Every Proxidize kit comes with an HX1 USB hub and a USB cable. We need the hub to connect the MX2 USB modems to the SX2 Server. The Proxidize Server has 3 USB ports. **It does not matter which port you use.**

**Please ensure the power switch on the rear of the hub is set to off.**

![Getting Started with Proxidize, SX2 Three](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/SwDizDSLaERRG3ncG1ml/8979145975965)
{% endstep %}

{% step %}

## Insert your SIM cards into the MX2 USB modems.

Please pay close attention here: You'll need to use **Nano-size** SIM cards for the Proxidize modems. If your sim card is not Nano-size, please remove the extra adapter layer to convert it to Nano-SIM.

This step is optional for the installation. If you don’t have the SIM cards now, you can add them later, but please keep in mind the proxies won’t work unless your SIM cards are connected properly and have data.

![Getting Started with Proxidize, SX2 Four](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/m8UrsOyjCYZME7nV3CPB/8979244057501)
{% endstep %}

{% step %}

## Connect your MX2 modems to the USB hub.

This is very simple. All you have to do is insert the USB modems into the USB hub ports.

![Getting Started with Proxidize, SX2 Five](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/g3xTRneccMYcztDvUrNq/8979287739933)
{% endstep %}

{% step %}

## Connect the power adapters to power sockets

Once you reach this step, you need to connect the adapters to power.

Please note every kit has 2 or more plugs. There will always be one plug for the Proxidize SX2 Server and one plug for every hub you have. These plugs are different so please do not connect them before reading the next step.

**Note: If you do not have a correct adapter at the moment, please do not try to use any charger you have as that can damage the hardware and void your warranty. We recommend not connecting the hardware to power until you have the correct socket adapters.**

![Getting Started with Proxidize, SX2 Six](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/WAyYm1U9O4ln3CYrRyJS/8979407963549)
{% endstep %}

{% step %}

## Connect the hardware to power

Now we need to connect the 5-Volt-rated power adapter to the Proxidize Server and the 12-Volt-rated power adapter to the USB hub.

Both the SX2 Server and the HX1 USB hub have a 5.5 mm input port, so please pay close attention to the power adapters as it would be easy to mix them up.

![Getting Started with Proxidize, SX2 Seven](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/5czluzRwWUckTgHDQsdt/8979529718941)
{% endstep %}
{% endstepper %}

Once your hardware is set up, install the Proxidize Linux Agent and onboard the server to your Proxy Builder dashboard.

See [Linux Agent: Onboarding and Offboarding Hosts](https://help.proxidize.com/legacy-products/proxy-builder/setup-and-onboarding/linux-agent-onboarding-and-offboarding-hosts.md).

If you have any questions about your kit or onboarding, reach out to us via live chat or email us at <support@proxidize.com>.


---
