# Proxidize SX4 Mini Server

Learn about the Proxidize SX4 Mini Server and its hardware role.

{% hint style="info" %}
The Proxidize SX4 Mini Server is discontinued and is no longer sold.

This page stays available for existing owners. For new proxy needs, see [Choose Between Mobile and Residential Proxies](https://help.proxidize.com/getting-started/choose-between-mobile-and-residential-proxies.md).
{% endhint %}

## Proxidize SX4 server features and specifications

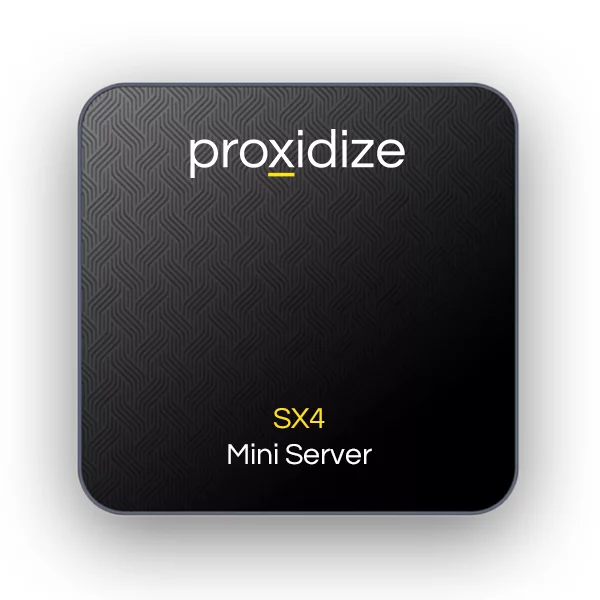

The Proxidize SX4 Mini Server is a small and potent Proxidize host server used for building a dependable and fast 4G LTE or 5G mobile proxy network. This server supports up to 80 USB modems and has a network speed of 2.5 Gbps, making it suited to bigger proxy farms.

The Proxidize SX4's compact size fits confined areas such as standard desks, data centers, or server cabinets.

As part of the Proxidize mobile proxy system, it connects smoothly with other Proxidize components to make a scalable on-premise mobile proxy setup.

### Models:

1. SX4-ROW model for Europe, Asia, Africa and Oceania
2. SX4-NSA model for the North America and South America

### SX4 Server Package Contents:

1. SX4 Mini Server
2. Power Adapter
3. Ethernet Cable
4. User Manual

### Features:

1. Instant integration with all Proxidize equipment & systems
2. Supports up 80 USB modems
3. Network speed of up to 2.5 Gbps
4. Year International Warranty

![](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/hXR7VDXkXmstW4sSKIWb/DgcYPt21TLv7mdeEhIh9SgCpZ9JHgF7dSOMAVTdrOENjQqNCuae9qrYiZig2uASypeX7EvIvfZZ.png)

## How to set up your Proxidize Sx4 Mini Server

{% stepper %}
{% step %}

### Take everything out of the box and packaging

Proxidize Kits come with a lot of packaging material to protect the hardware during international shipping.

The first thing you need to do once you have the package is to take everything out of its packaging.

![Getting Started with Proxidize, SX4 One](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/A5zsQsu5SqQbGiULBkES/9209058121501)
{% endstep %}

{% step %}

### Connect the Ethernet cable to your router and to the Proxidize SX4 Server

Every Proxidize kit comes with an Ethernet cable. You need to use this cable to connect the Proxidize Server to the internet by connecting one side of the cable to the Proxidize Server and the other side to your router.

![Getting Started with Proxidize, SX4 Two](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/B2ieunStHzuu6HnN036Q/9209049407005)
{% endstep %}

{% step %}

### Connect the USB hub to the Proxidize SX4 Server via the USB cable

Every Proxidize kit comes with an HX1 USB hub and a USB cable. We need the hub to connect the MX2 USB modems to the SX4 Server. The Proxidize Server has 6 USB ports ( 4 rear ports and 2 front ports). **You will need to use the rear ports only**.

**Please ensure the power switch on the rear of the hub is set to off.**

![Getting Started with Proxidize, SX4 Three](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/vzwN4xr5orOOQUG42CPL/9209049857053)
{% endstep %}

{% step %}

### Insert your SIM cards into the MX2 USB modems

Please pay close attention here: You'll need to use **Nano-size** SIM cards for the Proxidize modems. If your sim card is not Nano-size, please remove the extra adapter layer to convert it to Nano-SIM.

This step is optional for the installation. If you don’t have the SIM cards now, you can add them later, but please keep in mind the proxies won’t work unless your SIM cards are connected properly and have data.

![Getting Started with Proxidize, SX4 Four](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/GonC5fpmAczTRqnET46j/9209059537181)
{% endstep %}

{% step %}

### Connect your MX2 modems to the USB hub

This is very simple. All you have to do is insert the USB modems into the USB hub ports.

![Getting Started with Proxidize, SX4 Five](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/0lklGWVNd3MTgb7mz41K/9209050782237)
{% endstep %}

{% step %}

### Connect the power adapters to power sockets

Once you reach this step, you need to connect the adapters to power.

Please note every kit has 2 or more plugs. There will always be one plug for the Proxidize SX4 Server and one plug for every hub you have. These plugs are different, so please only connect them after reading the next step.

**Note: If you do not have a correct adapter at the moment, please do not try to use any charger you have as that can damage the hardware and void your warranty. We recommend not connecting the hardware to power until you have the correct socket adapters.**

![Getting Started with Proxidize, SX4 Six](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/viRj0NpD7N38RKbIvSRz/9209051187741)
{% endstep %}

{% step %}

### Connect the hardware to power

Now we need to connect the 5-Volt-rated power adapter to the Proxidize Server and the 12-Volt-rated power adapter to the USB hub.

Both the SX4 Server and the HX1 USB hub have a 5.5 mm input port, so please pay close attention to the power adapters as it would be easy to mix them up.

![Getting Started with Proxidize, SX4 Seven](https://content.gitbook.com/content/iAQa47xivOtQQ7mQZOnQ/blobs/eidz3GgZ4FYKnbaqagNO/9209060840349)
{% endstep %}
{% endstepper %}

Once your hardware is set up, install the Proxidize Linux Agent and onboard the server to your Proxy Builder dashboard.

See [Linux Agent: Onboarding and Offboarding Hosts](https://help.proxidize.com/legacy-products/proxy-builder/setup-and-onboarding/linux-agent-onboarding-and-offboarding-hosts.md).

If you have any questions about your kit or onboarding, reach out to us via live chat or email us at <support@proxidize.com>.


---
